Autoit Trojan Spy Payload...

Autoit are one of the known compiler used by malware because of its flexibility and the power to control the system, simulate keystrokes, mouse movement and window/control manipulation in order to automate tasks.

In this blog I will discuss the obfuscation and payload of an autoit Trojan spy malware that seems to have different detection name with different AV company.

Sha1: c06770b5a568404b3167d287f4fa6f0d4305a936

Sha256: 9307773457add5c033fc2505c947b091f213c833b9c41d302d083452fb08a0f2

different detection name

Black box analysis of the file:

Drop copy of itself in its created folder %appdata%\Roaming\Windata.

%AppData%\Roaming\Windata\MDZYTH.exe

Drop a component file:

%AppData%\Local\Temp\HTNYEL.vbs

Add several registry entries as part of its installation process.

HKEY_CURRENT_USER\Software\Win32

HKEY_CURRENT_USER\Software\Win32 HTNYEL "2680"

Add REGRUN entry to persist on the infected machine.

HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Run HTNYEL "" %AppData%\Roaming\Windata\MDZYTH.exe""

But due to some checking or some other component it needs you cannot see the other payload done by this malware so we will go now to the interesting stuff. reverse engineering!!! :)

Static Analysis:

Upon extracting the autoit script to the compiled autoit executable you can see that the file was obfuscated and encrypted.

some obfuscated and encrypted part of au3 script

Decryption Routine:

by analyzing the script, I found out that it use a decryption function that contains 2 arguments (in this case it was the "E6ZS0RR7R"). The first argument is the actual encrypted script and the 2nd argument is the decryption key (in this case it was the "$H3LW6XV9CR7S" ).

The decryption routine is quite simple but effective to hide the actual string value.

decryption key

decryption routine

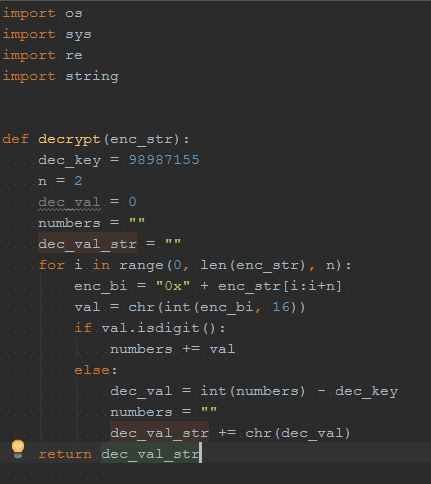

since stable autoit debugger is not quite available in the wild (as far as I know :)). I simulate the decryption routine in Python script, decrypt the string and save it to another file.

decryption routine in python

  after decrypting the string it was quite readable now and much easier to understand even the variable name is obfuscated.This technique makes the static analysis more difficult.

after the decryption

Some of its Payload:

Now we will discuss the behaviors and payloads of this malware that cannot be seen right away in normal black-box testing.

Notable string and filename that may it need to complete the infection to the targeted machine.

components and notable string

Monitor some AV product and send this information to its C&C server.



monitored AV product

 modify the host file of the infected machine.

modify the host file

add image file execution registry.

image file execution

if the use is the admin , gather the active port , the .exe that are responsible for the active ports and also its process ID.

netstat command for parsing active ports

 check the type of the drives that are connected to the infected amchine and send it through C&C server.

parsing drivetype

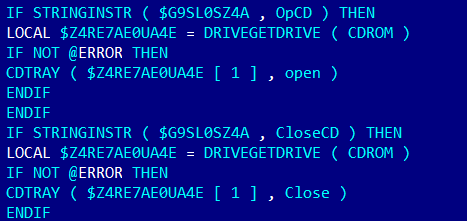

play around with the cdrom tray.

playing around with cdrom tray

run its keylogger.

keylogger component

part of decoded keylog scripy

another executable and vb script component that will be drop to the infected machine.

another .exe and script

decoded script that parse the running process

In this sample we can say how powerful the autoit compiler to control the system. :)
enjoy!!!
